Product introduction
INTRODUCTION

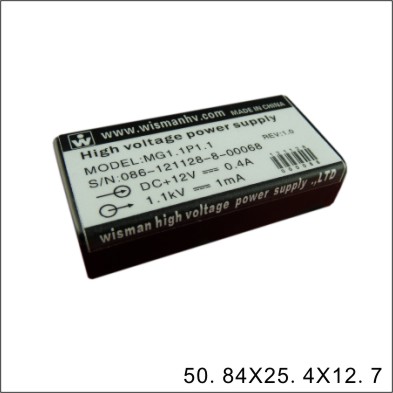

Wisman's MG module is a low-noise, high-stability and miniaturized module, with six-sided shielding for proportional counters, mass spectrometers, and electron microscopes. OEM customization is available.
APPLICATIONS
APD(Avalanche Photo Diode)
Electron Multiplier
Hibrid Photo Detector
Bar Code Scanners
Bomb Detectors
Cellular Electrophoresis
Detectors
E-chuck(Electrostatic Chuck)
ESD(Electrostatic Discharge Testing)
Flow cytometry
FPD(Flat Panel Ditector)
Gamma Cameras
Geiger Counter
GM Tubes(Geiger Mueller Tubes)
Hi Pot Testing
Immunocytology
Ion Mobility Spectrometry(IMS)
Ionizers
Leak Detector
PMT,MM,radiation counter
Electron Beam/Ion Beam
Mass spectrometry
PhotoMultiplier Tubes
Scintillators
Electron Guns
Ion Guns
Nuclear Instruments
Electrostatic lenses
Spectroscopy
Microchannel Plates
SPECIFICATIONS
Input:
12Vdc±1VDC,100mA TYP.
Input optional:
-15：15Vdc±1VDC,100mA -24：24Vdc±1VDC,100mA
output voltage:
300V,500V,1KV,1.1KV,1.2KV,1.5KV Optional high-voltage lead wire output, the wire length is 200mm, other lengths are optional.
Input Current: (typical)
High stability: 0.001％
ultra-low ripple: 5mV
Temperature coefficient: 10ppm/℃
Voltage Regulation:
Line regulation: 0.001%
Load regulation: 0.01%
working temperature: 0-45℃
storage temperature: -40 to +85℃
Humidity: 20-80%RH( non-condensing)
Dimensions: D50.8mm X W25.40mm X H12.7mm
Weight: 30g
short circuit protection and arc fault protection
For information concerning our high voltage products, please call at 086-029-33693480 or visit our website www.wsmhv.com
Wisman advances medical care, industrial processes, quality control, scientific research, security and telecommunications by providing innovative high voltage power supplies including micro-modules high voltage power supply, modules high voltage power supply, X-ray generator, rack mount voltage power supply, special customized high voltage power supply, high voltage accessories, etc. that enable equipment manufacturers to improve their systems’ performance, reliability, cost and bottom line. Power range from 100mW to 200kW, voltage range from 60V to 500kV. The application fields of Wisman products cover medical, industrial, semiconductor, safety, environment, analytical instruments, scientific research and other fields. You can purchase a variety of specifications in one-stop high-voltage power supplies from Wisman. We have a high-voltage power supply research and development team, high-voltage power supply development software and software for testing high voltage insulation technology and zero current resonance technology, making our high voltage power supplies maintain high stability, low ripple, excellent in EMC. Our products are compact, highly efficient with a long operating life.
Wisman high voltage power supplies are competitively priced and a great idea for OEM customers.
